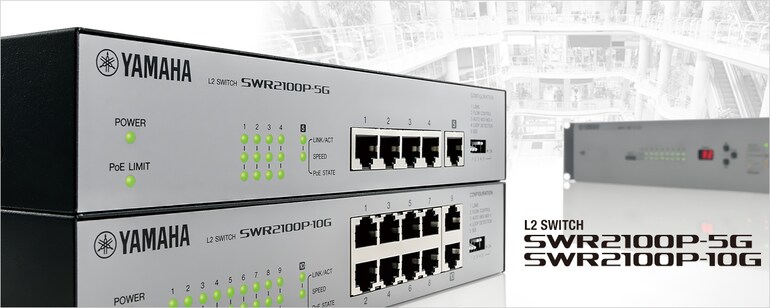

SWR2100P Switch L2

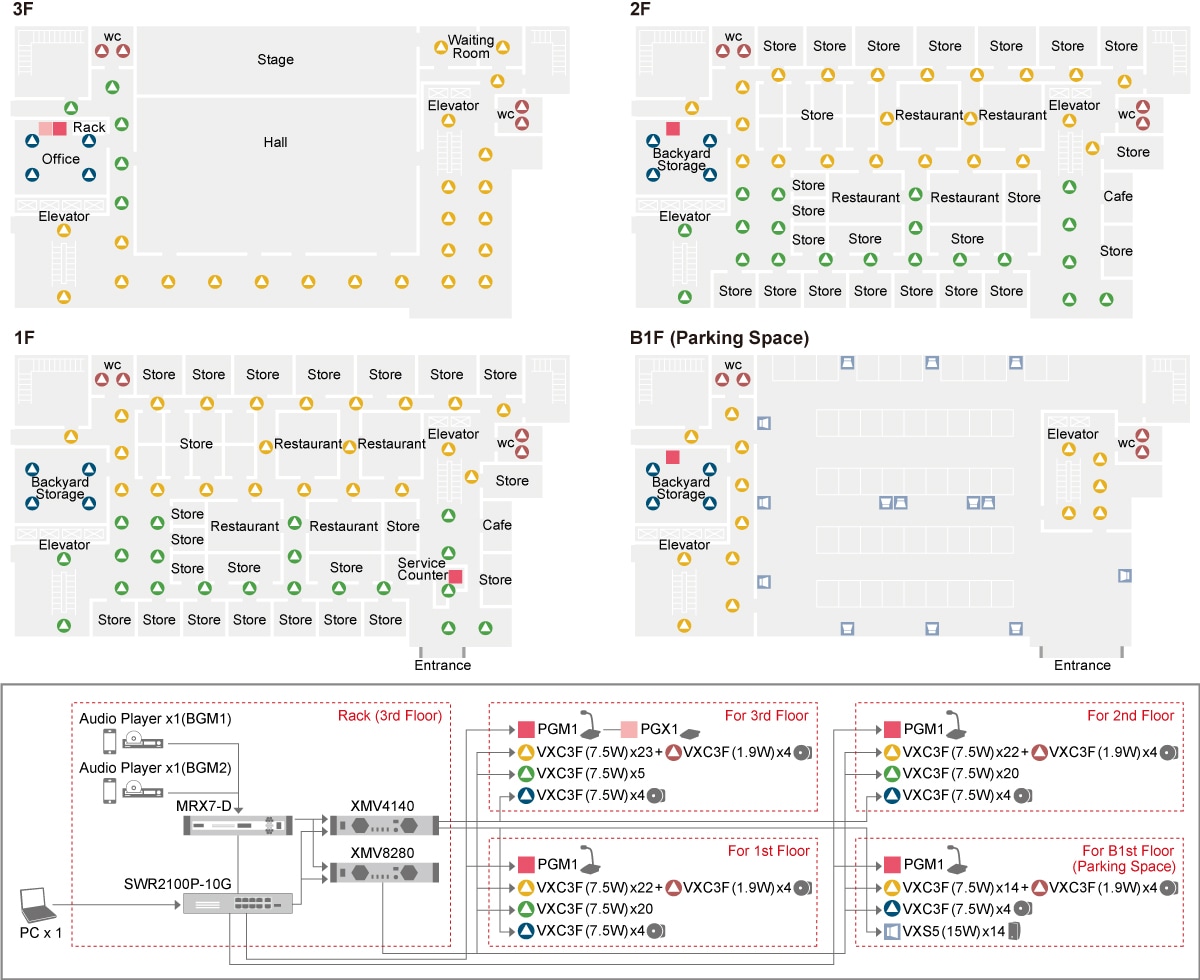

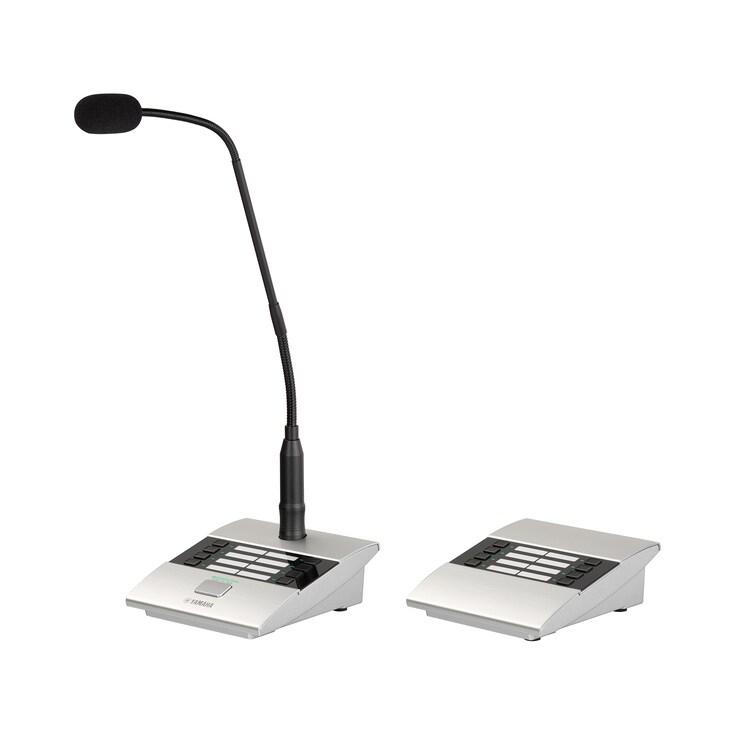

The "SWR2100P series” which are simple L2 switches can supply power as well as audio and control signals to a PoE-compliant Dante device such as the paging station microphone “PGM1” through just one Ethernet cable. Since the power supply and the network wiring can be combined, the number of cables being used can be reduced, and the connection distance can be extended, so the degree of freedom of Dante device installation is increased and construction flexibility is further improved.

Systems built around the SWR2100P-5G or SWR2100P-10G L2 switches allow comprehensive network monitoring from the dedicated Yamaha LAN Monitor software application, with PoE power status monitoring and ON/OFF switching capability.

Entender cómo se conectan los interruptores múltiples instalados en diferentes ubicaciones, además de cómo los dispositivos de red están conectados a esos interruptores, puede ser una tarea difícil y que requiere mucho tiempo. El Monitor LAN de Yamaha hace visible la topología general de la red, dando al usuario una visión completa de cómo están interconectados los interruptores múltiples y los dispositivos de red de Dante. Simplemente conecte una computadora al interruptor de la serie SWP/SWR más cercano e inicie el software Monitor LAN de Yamaha.

You can take a “snapshot” of the network status when set up as required. The software can then automatically keep track of the settings and alert you to any changes. You could take a snapshot of the network, and then you would be alerted if a cable is disconnected, if a device is turned off, or if a wrong connection is made prior to the performance, for example.

Identifying devices connected to a switch by only their IP or MAC address is a difficult and error-prone approach. Connected Dante devices are identified by a Dante icon as well as a device ID previously set up via the Dante Controller software. You can also enter additional info, such as the location of the device, in the Label and Comment fields.

Si el dispositivo de monitoreo no responde a un Ping, este juzga que se ha producido una falla y detiene automáticamente la fuente de alimentación PoE a ese dispositivo y luego la reanuda. Esto reinicia el equipo de monitoreo e intenta la recuperación. Al administrar colectivamente el estado de los dispositivos distribuidos en un área amplia, puede garantizar que la administración del equipo funcione de manera mucho más fluida.
