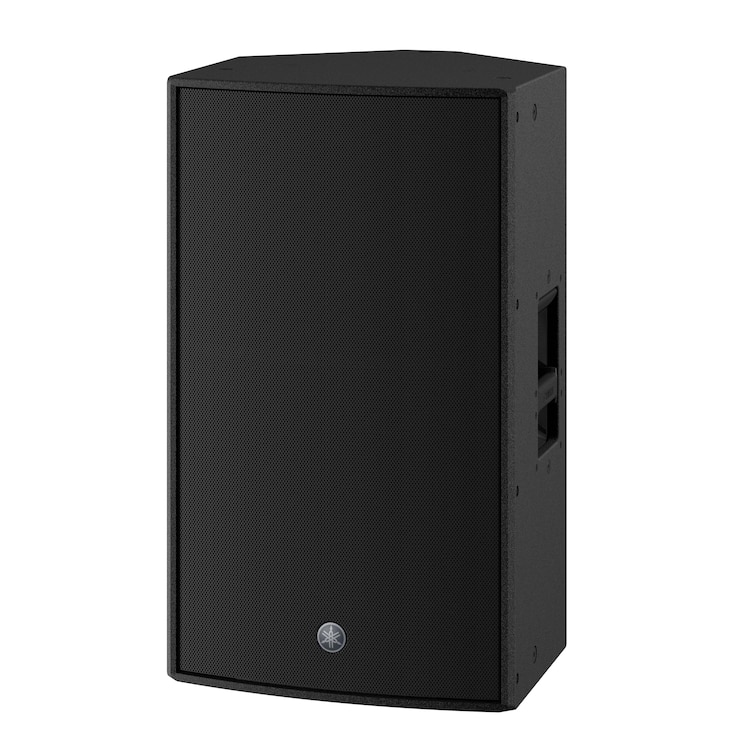

CZR15 / CZR15WLoudspeaker
The CZR15 is a 2-way loudspeaker offering high power handling and outstanding sonic performance in a portable, lightweight, yet rugged design. Its versatile, compact enclosure design makes the lightweight CZR15 ideal for range of live performance and installed sound environments—from live bands at outdoor festivals to DJ’s in clubs—these loudspeakers deliver crystal clear, high-quality sound with impressive low frequency performance.
- 2-way loudspeaker with a 2” HF and a 15" LF
- Features Yamaha's own Wide Dispersion CD Waveguide Horn
- High power 800W(PGM) power handling and Bi-amp capable
- Floor monitoring setting enables mirroring configuration
- Lightweight yet very durable plywood cabinet with premium graded Polyurea coating
- Dual-angle pole socket
- Optional speaker cover (SPCVR-DZR15)
- Rotatable horn and variety of U-bracket options (UB-DZR15H/V) for rigging allow for very flexible setup and speaker placement
- Durable Black or white finish

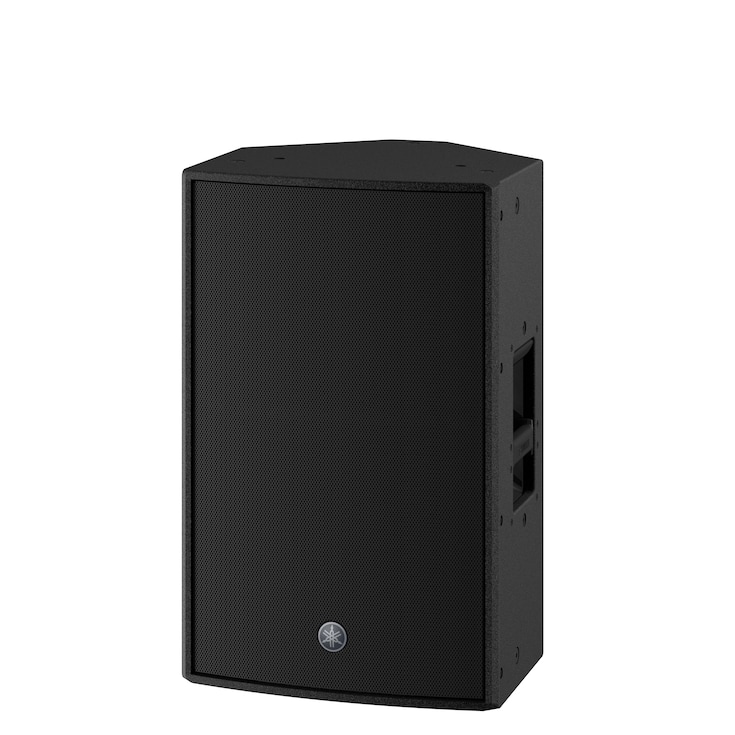

CZR12 / CZR12WLoudspeaker
The CZR12 is a 2-way loudspeaker offering high power handling and outstanding sonic performance in a portable, lightweight, yet rugged design. Its versatile, compact enclosure design makes the lightweight CZR12 ideal for range of live performance and installed sound environments—from live bands at outdoor festivals to DJ’s in clubs—these loudspeakers deliver crystal clear, high-quality sound with impressive low frequency performance.
- 2-way loudspeaker with a 2” HF and a 12" LF
- Features Yamaha's own Wide Dispersion CD Waveguide Horn
- High power 800W(PGM) power handling and Bi-amp capable
- Floor monitoring setting enables mirroring configuration
- Lightweight yet very durable plywood cabinet with premium graded Polyurea coating
- Dual-angle pole socket
- Optional speaker cover (SPCVR-DZR12)
- Rotatable horn and variety of U-bracket options (UB-DZR12H/V) for rigging allow for very flexible setup and speaker placement
- Durable Black or white finish

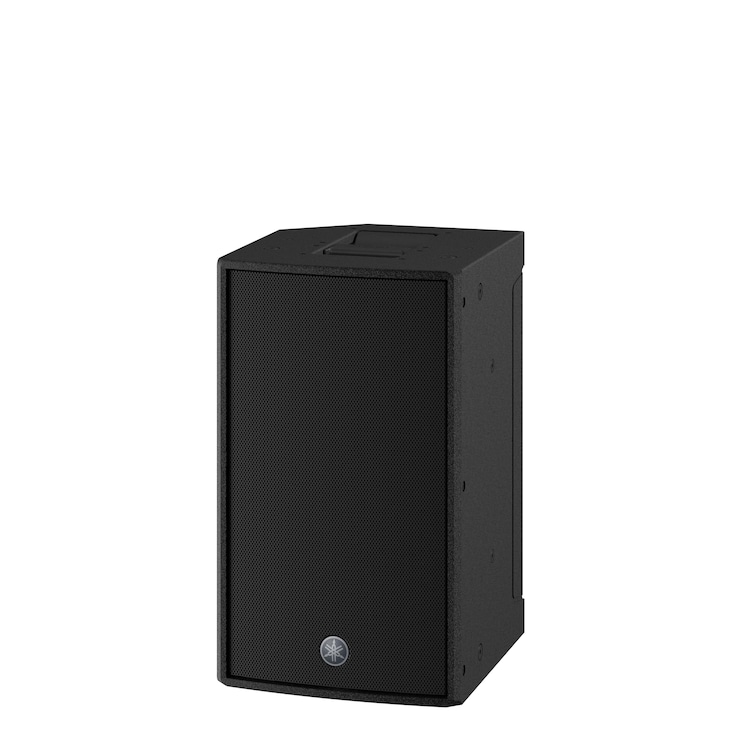

CZR10 / CZR10WLoudspeaker
The CZR10 is a 2-way loudspeaker offering high power handling and outstanding sonic performance in a portable, lightweight, yet rugged design. Its versatile, compact enclosure design makes the lightweight CZR10 ideal for range of live performance and installed sound environments—from live bands at outdoor festivals to DJ’s in clubs—these loudspeakers deliver crystal clear, high-quality sound with impressive low frequency performance.
- 2-way loudspeaker with a 2” HF and a 10" LF
- Features Yamaha's own Wide Dispersion CD Waveguide Horn
- High power 700W(PGM) power handling and Bi-amp capable
- Floor monitoring setting
- Lightweight yet very durable plywood cabinet with premium graded Polyurea coating
- Dual-angle pole socket
- Optional speaker cover (SPCVR-DZR10)
- Rotatable horn and variety of U-bracket options (UB-DZR10H/V) for rigging allow for very flexible setup and speaker placement
- Durable Black or white finish
Características
PROFESSIONAL PERFORMANCE. SUPERIOR POWER-HANDLING.
The CZR Series is a range of passive loudspeakers offering high power handling and outstanding sonic performance in a portable, lightweight, yet rugged design. The CZR is ideal for a range of live performance and installed sound environments — from live bands at outdoor festivals to DJ’s in clubs — these loudspeakers deliver crystal clear, high-quality sound with impressive low frequency performance.
Finish
The fact that speakers must sound good goes without saying, but in permanent installations they have to look good and match the interior of the venue, too. Yamaha CZR Series Speakers and CXS XLF subwoofers are available in black or white.
Focused sound for flexible installation
-
The CZR Series features 15˝, 12˝ and 10˝ models with transducers with die-cast aluminum frames with a 3˝ voice coil for very high power input, and a lightweight yet powerful neodymium magnet that helps to add punch and power to your bass. The HF unit achieves vivid, soaring highs from its titanium diaphragm with a 2˝ voice coil and neodymium magnet. Like the DZR, the CZR models also feature the rotatable constant directivity horn design (90°x 50° for the CZR15, and 90°x 60° for the CZR12 and CZR10) for increased flexibility in mounting vertically or horizontally.
Best in Class SPL performance

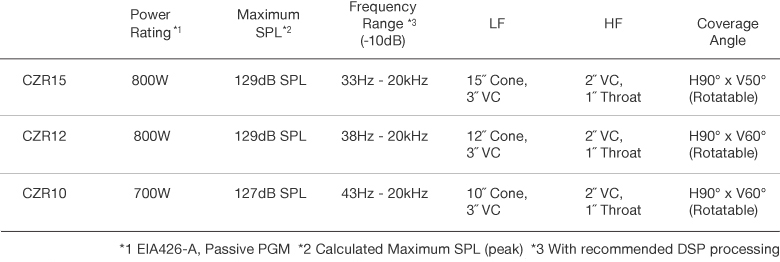

The CZR15 and CZR12 can both produce 129dB SPL with a power rating of 800W for the CZR15 and CZR12, and 700W for the CZR10 in passive mode. Every CZR model is also equipped with Biamp mode to maximize performance.
Intelligent processing to maximize system performance
When used in combination with Yamaha PX Series amplifiers or other compatible signal processors, CZR Series loudspeakers can take full advantage of dedicated speaker processor tuning settings.
Premium materials. Road-tested toughness
-
The specially designed enclosure features lightweight and robust premium plywood with a scratch-resistant, rugged Polyurea coating for improved portability and durability on the road, as well as two different sockets for pole-mounting at either -7° down tilt or level.
Flexible Deployment Options
CZR Series loudspeakers come equipped with plenty of rigging points for any installation environment, allowing for rigged application with standard eyebolts*. Specialized U brackets are also available for convenient flying/hanging installation. *Eyebolts not included.
Opciones
Cubierta de altavoz funcional
Las cubiertas de altavoces funcionales que protegen a sus altavoces de condiciones climáticas desfavorables durante actuaciones en exteriores, almacenes polvorientos y sucios o los rigores del transporte de equipos en la carretera.
- Tejido trilaminar de poliéster duradero, con revestimiento interior de PVC y cojín interior para la supresión de impactos.
- La malla frontal permite un refuerzo de sonido con la cubierta y garantiza el enfriamiento del amplificador
- El techo trasero permite un fácil acceso al panel trasero con la tapa puesta
- La ranura del manillar permite un fácil acceso a los manillares para el transporte
- Espacio adicional para bolsillo de cables para transportar cables
*NOTA: Las cubiertas no garantizan la protección contra el goteo del agua.
Soportes en U
UB-DZR15H / UB-DZR15HWSoportes en U
Soportes en U que permiten un montaje sencillo y fácil en configuraciones horizontales. (para DZR15 / 15-D, CZR15)
- Peso neto: 6.2kg; 13.7 libras
- Aplicable para: DZR15/15-D, CZR15
- Acabado en blanco o negro
UB-DZR15V / UB-DZR15VWSoportes en U
Soportes en U que permiten un montaje sencillo y fácil en configuraciones verticales. (para DZR15 / 15-D, CZR15)
- Peso neto: 5.9 kg; 13.0 libras
- Aplicable para: DZR15/15-D, CZR15
- Acabado en blanco o negro
UB-DZR12H / UB-DZR12HWSoportes en U
Soportes en U que permiten un montaje sencillo y fácil en configuraciones horizontales. (para DZR12 / 12-D, CZR12)
- Peso neto: 4.7 kg; 10.4 libras
- Aplicable para: DZR12/12-D, CZR12
- Acabado en blanco o negro
UB-DZR12V / UB-DZR12VWSoportes en U
Soportes en U que permiten un montaje sencillo y fácil en configuraciones verticales. (para DZR12 / 12-D, CZR12)
- Peso neto: 4.7 kg; 10.4 libras
- Aplicable para: DZR12/12-D, CZR12
- Acabado en blanco o negro
UB-DZR10H / UB-DZR10HWSoportes en U
Soportes en U que permiten un montaje sencillo y fácil en configuraciones horizontales. (para DZR10 / 10-D, CZR10)
- Peso neto: 3,8 kg; 8,4 libras
- Aplicable para: DZR10/10-D, CZR10
- Acabado en blanco o negro
UB-DZR10V / UB-DZR10VWSoportes en U
Soportes en U que permiten un montaje sencillo y fácil en configuraciones verticales. (para DZR10 / 10-D, CZR10)
- Peso neto: 3,6 kg; 7,9 libras
- Aplicable para: DZR10/10-D, CZR10
- Acabado en blanco o negro
Cubierta de altavoz funcional
SPCVR-DZR15Cubierta de altavoz funcional
Las cubiertas de altavoces funcionales que protegen a sus altavoces de condiciones climáticas desfavorables durante actuaciones en exteriores, almacenes polvorientos y sucios o los rigores del transporte de equipos en la carretera. *NOTA: Las cubiertas no garantizan la protección contra el goteo del agua. (Altavoces compatibles: DZR15/15-D, DZR15W/15-DW, CZR15, CZR15W)
- Altavoces compatibles: DZR15/15-D, DZR15W/15-DW, CZR15, CZR15W
- Peso: 1,8 kg; 4,0 libras
- Volumen: 0.14m³
SPCVR-DZR12Cubierta de altavoz funcional
Las cubiertas de altavoces funcionales que protegen a sus altavoces de condiciones climáticas desfavorables durante actuaciones en exteriores, almacenes polvorientos y sucios o los rigores del transporte de equipos en la carretera. *NOTA: Las cubiertas no garantizan la protección contra el goteo del agua. (Altavoces compatibles: DZR12/12-D, DZR12W/12-DW, CZR12, CZR12W)
- Altavoces compatibles: DZR12/12-D, DZR12W/12-DW, CZR12, CZR12W
- Peso: 1,5 kg; 3,3 libras
- Volumen: 0.11m³
SPCVR-DZR10Cubierta de altavoz funcional
Las cubiertas de altavoces funcionales, protegen a sus altavoces de condiciones climáticas desfavorables durante actuaciones en exteriores, almacenes polvorientos y sucios o los rigores del transporte de equipos en la carretera. *NOTA: Las cubiertas no garantizan la protección contra el goteo del agua. (Altavoces compatibles: DZR10/10-D, DZR10W/10-DW, CZR10, CZR10W)
- Altavoces compatibles: DZR10/10-D, DZR10W/10-DW, CZR10, CZR10W
- Peso: 1,2 kg; 2,6 libras
- Volumen: 0.08m³
