The hammered bowls in this series feature a squarer “cambered” profile than conventional bowl designs. The most obvious benefits are ample volume, ideal timpani decay, and significantly improved mallet response. The most desirable qualities of copper are emphasized, with carefully thought out and proven refinements to bowl size, bearing edge shape (the edge that contacts the timpani head), the diameter of the aperture in the bottom of the bowl, and more. The overall result is rich, deep tone with superior playability.

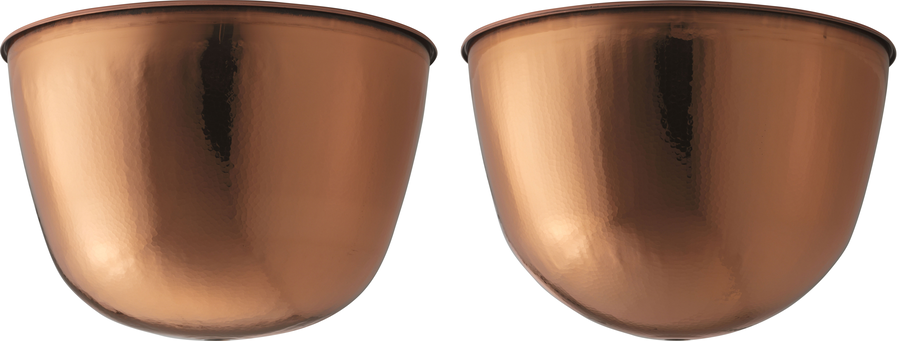

Left: Cambered bowl, Right: Parabolic bowl
Steel Caster Nuts
The nuts that hold the main casters in place are made of steel, adding to the weight and stability of the frame so that sound is effectively transferred to the floor and to every corner of the hall.

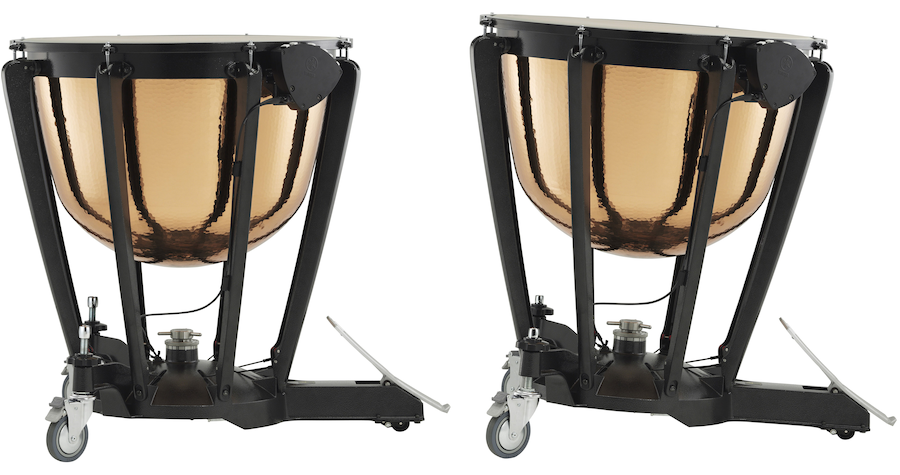

24-inch and 27-inch Sizes

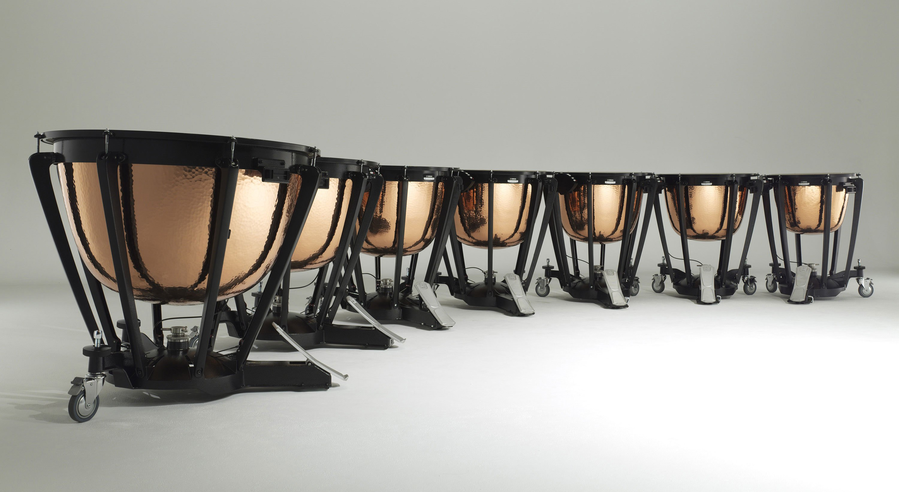

In addition to the 23-inch and 26-inch sizes, the lineup has been expanded with 24-inch and 27-inch sizes, providing a broader range of choices to match the music being played as well as the player’s preferences. More choice means greater potential for musical expression.

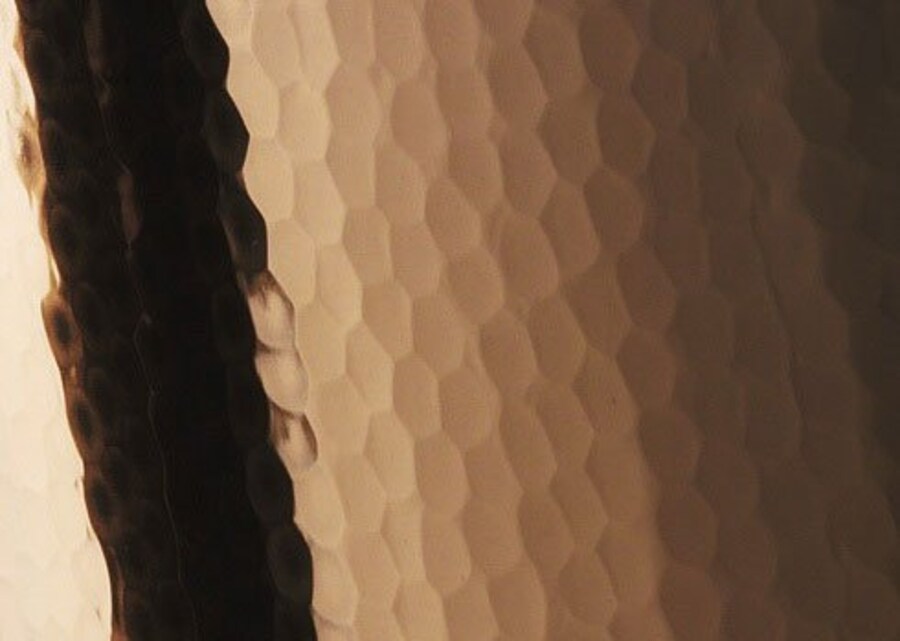

Specially designed hammering machines faithfully simulate the hand hammering process while eliminating the unavoidable inconsistencies of handwork. The goal was not only to improve efficiency, but more importantly to recreate the technique of master craftsmen. The result is bowls that exude hand-made warmth.

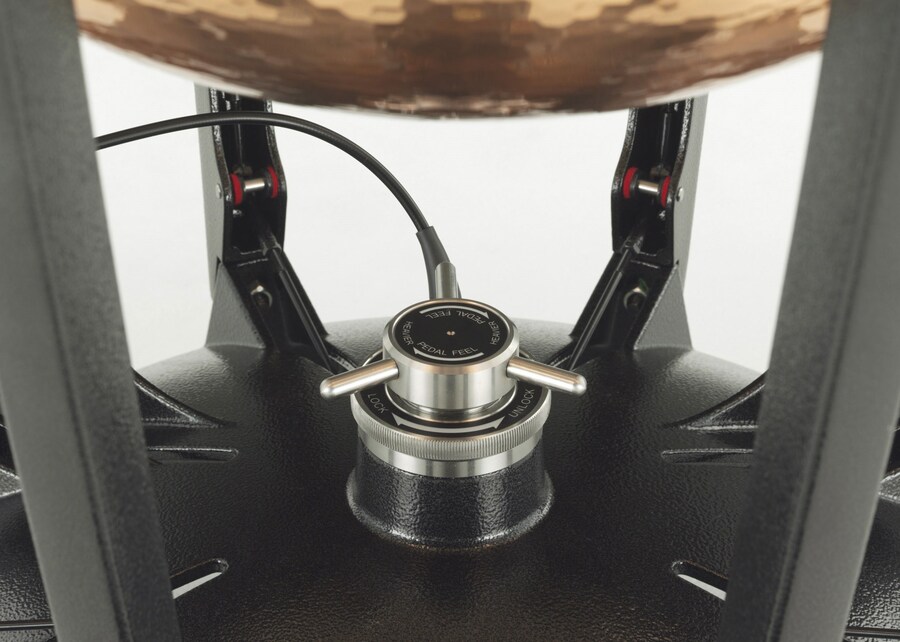

Pedal Adjustment Clutch (PAC) System
The PAC system allows pedal resistance to be adjusted while maintaining perfect pedal balance. A large knob makes adjustment easy too.

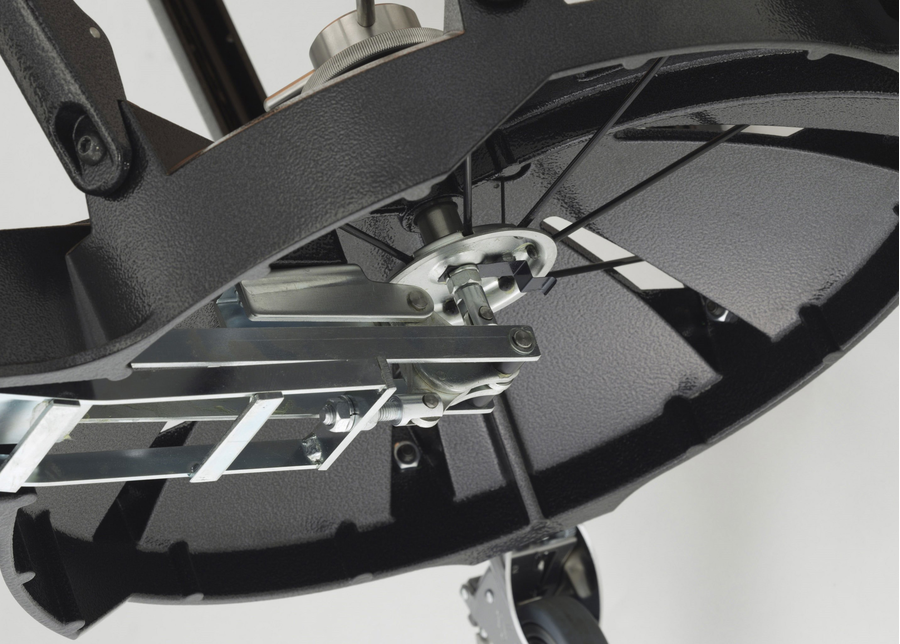

Pedal de balance Sistema de muelle
Pedal spring and head tension are balanced so the set pitch is maintained even if the player removes his or her foot from the pedal. Pitch changes across the entire range are smooth and easy. A wide pitch range of approximately a minor sixth per inch has been achieved.

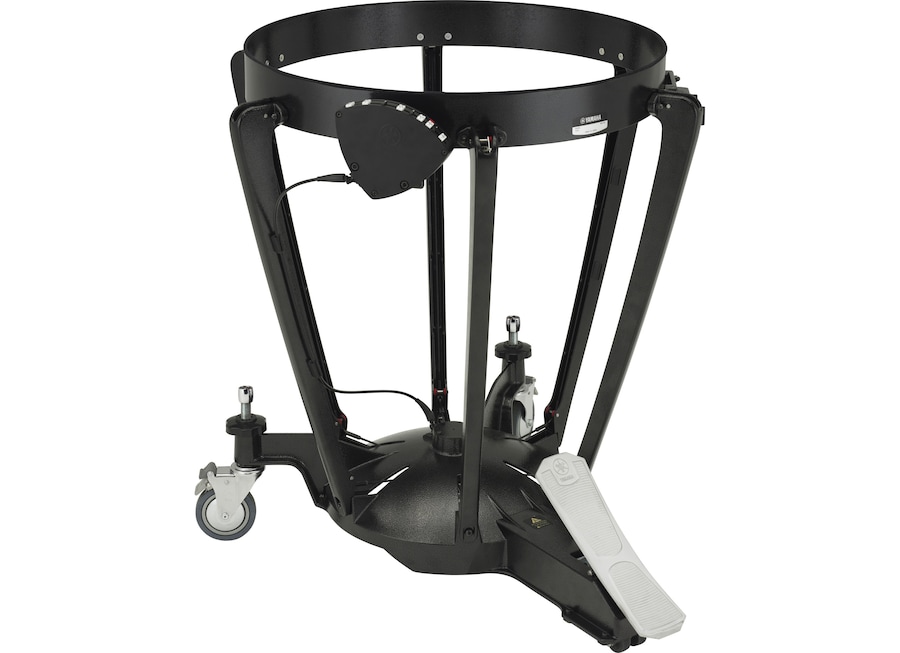

The timpani frame does more than just support the bowl. It plays a significant role in sound quality as well. In addition to offering outstanding strength and operability, the frames are designed to a weight that contributes to optimum acoustic response.
Large main casters are supplemented by a third caster below the pedal, allowing the instruments to glide smoothly and easily.

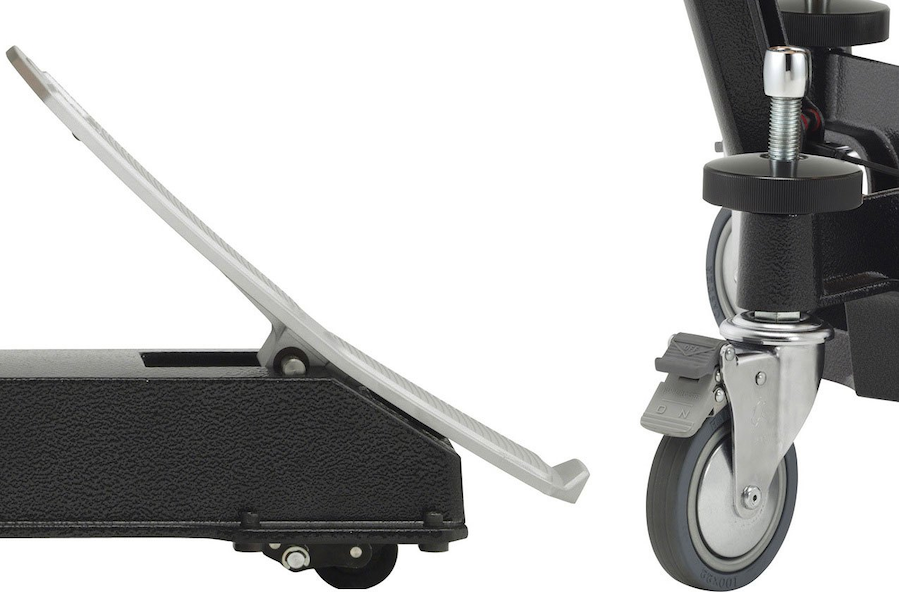

Left: Pedal caster, Right: Main caster
Ajuste de la altura

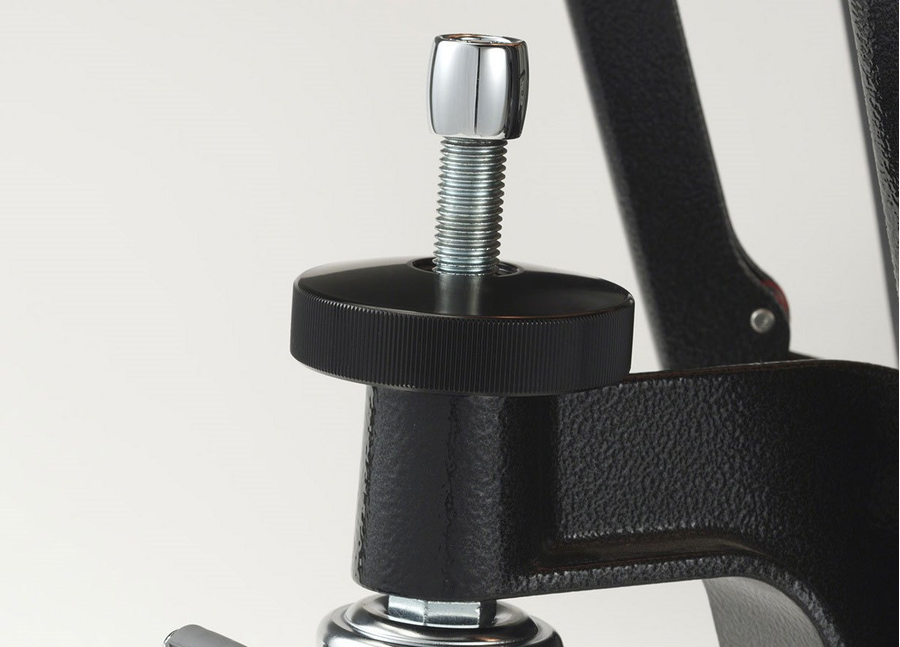

The height of all casters can be adjusted over a 25mm range, allowing precise adjustments to the instrument height as well as head angle. The instruments can be ideally positioned for standing or seated playing, on any stage. Adjustment is carried out using the supplied tuning key or an appropriate allen wrench, and can be easily accomplished by one person.
*The picture shows TP-7300R Series.
The main casters include a one-touch lock mechanism that contributes to fast, sure setup. In addition to the main caster lock mechanism an auxiliary brake has been added to the pedal caster. The player can engage the auxiliary brake to securely lock the caster and prevent movement of the instrument.

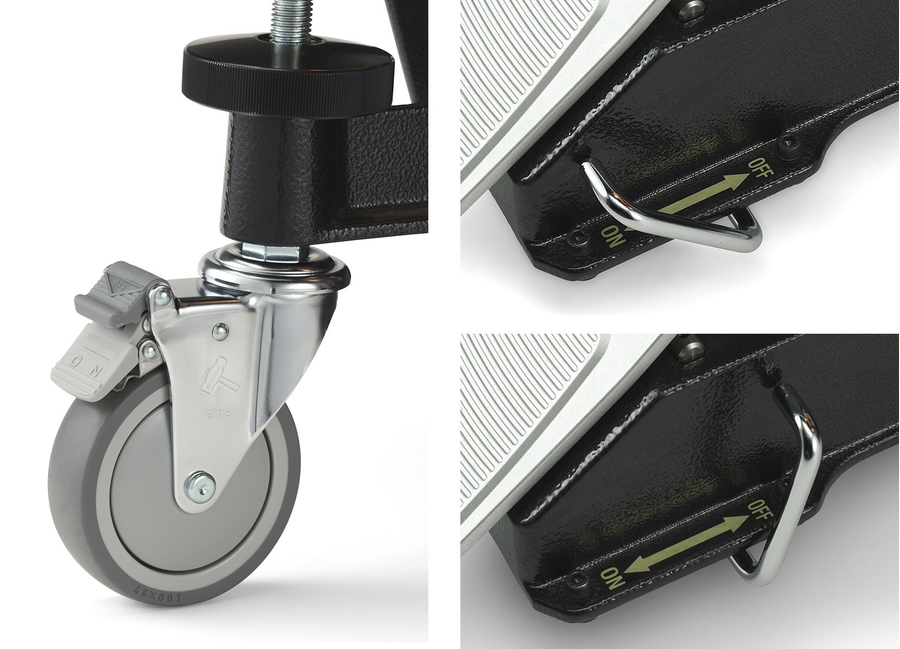

Left: Main caster lock, Right: Pedal caster auxiliary brake

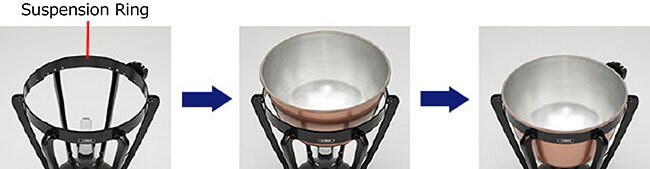

The bowl is seated in a “Floating Mount” suspension ring and does not contact any other part of the instrument. This prevents distortion of the bowl and allows unrestricted head oscillation for superior tone, resonance, and pitch clarity. This frame design brings out the full musical potential of the bowl.
*The picture shows TP-4300R Series.

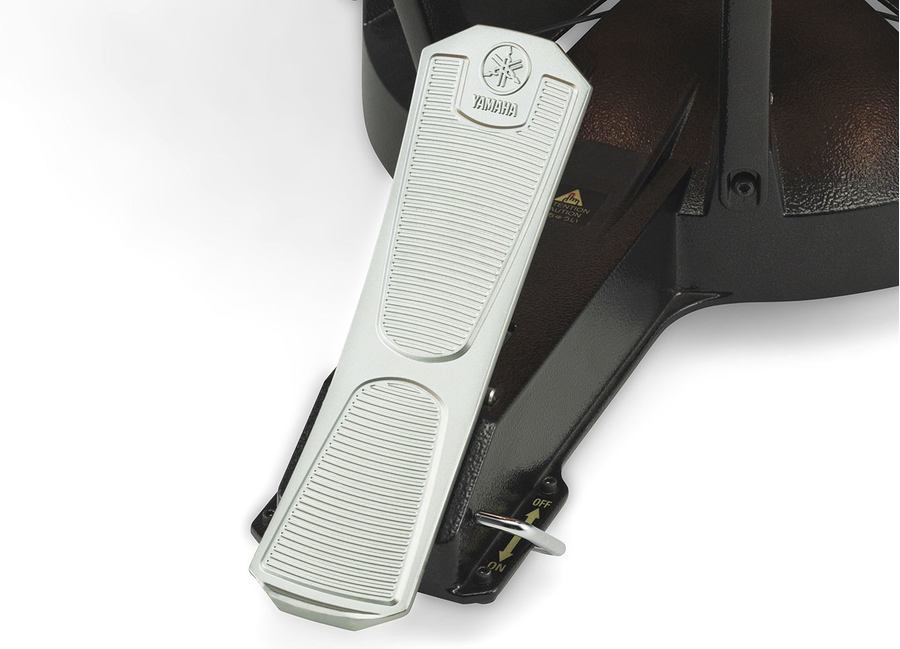

Se ha optado por unos pedales grandes para facilitar el uso.

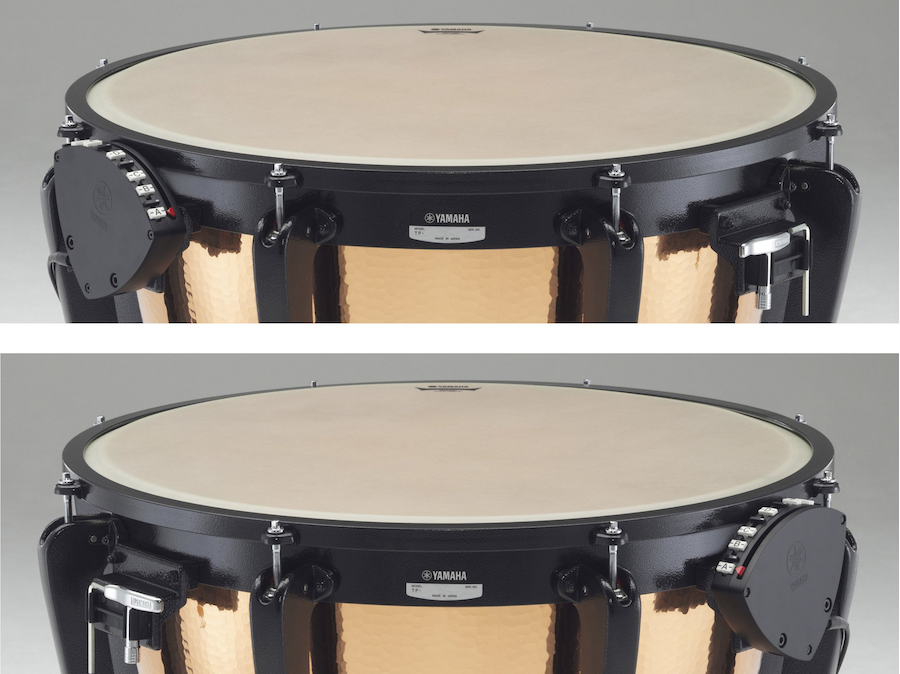

Indicador de afinación
El indicador puede colocarse indistintamente en el lado derecho o izquierdo del instrumento para facilitar la configuración en estilo alemán o internacional.
Espacio para llave de afinación.
Se incluye un lugar para colocar la llave de afinación en la parte opuesta al indicador de afinación.

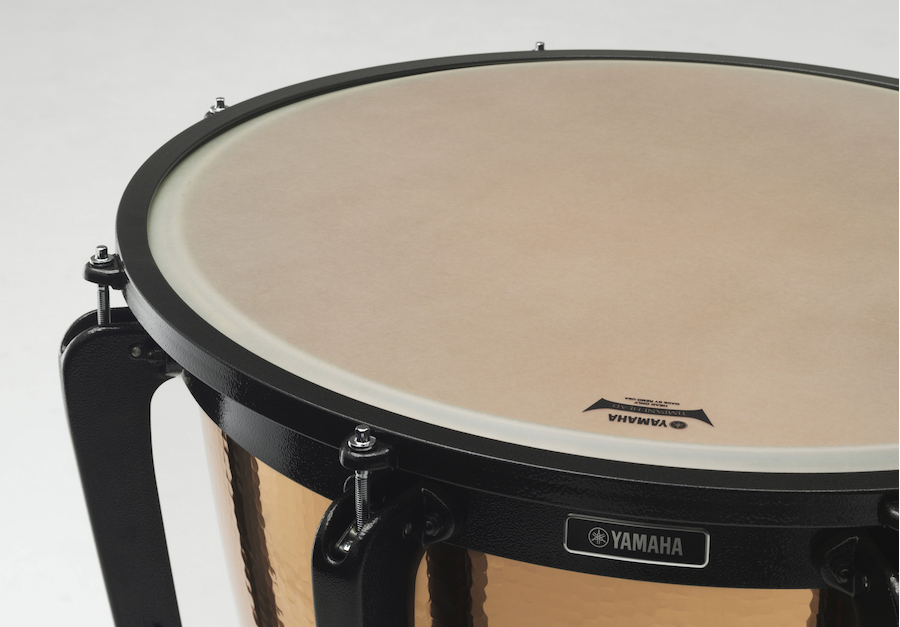

Parches Yamaha Remo Renaissance
Los parches Yamaha Remo Renaissance con anillo de inserción de aluminio proporcionan una notable capacidad de expresión, un tono de afinación estable y, además, son muy duraderos.
