Outdoor Events / Assemblies / Public Addresses [Small]

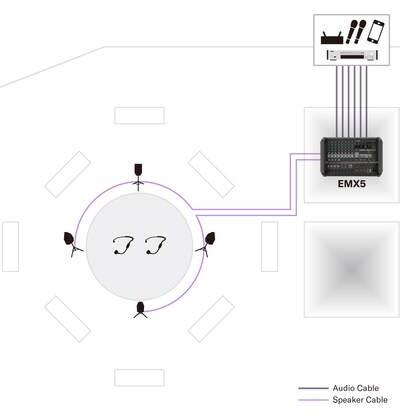

A compact and user-friendly PA system that is easily operated for speech and/or background music playback at relatively small outdoor corporate/private/public events, assemblies and public addresses, for an audience of up to 100 people depending on seating/venue size.

- The system consists of a powered mixer and 4 x passive speakers.

- High output power of 2 x 630W. [Powered Mixer EMX5]

- Passive speakers with durable and lightweight (9.4kg) cabinets, and equipped with a highly responsive woofer and a precise 2" compression driver that ensure consistent high-definition sound. [Loudspeaker CBR10]

- M8 rigging points allow for a versatile range of installation options. [Loudspeaker CBR10]

Category Model Name Qty
Mixing Console EMX5 1
Power Amplifier - -
Main Speaker CBR10(Loudspeaker) 4
Subwoofer - -
Monitor Speaker - -



Powerful & High Efficiency Class-D Amplifier

Powerful & High Efficiency Class-D Amplifier

The EMX5 model features a built-in high-efficiency power amplifier of 2 x 630W of output power. Despite the low power consumption, this amp is capable of very high volume output, yet still manages to remain surprisingly lightweight. It also come equipped with an onboard overload protection function to improve reliability and prolong component life and performance quality.

Functional Speaker Cover

Functional Speaker Cover

The functional speaker covers that protect your speakers from unfavorable weather conditions during outdoor performances, dusty and dirty warehouse storage, or the rigors of equipment transport on the road.

*NOTE: The covers do NOT guarantee water-drip protection.



Box-type robust and portable powered mixer

630 W + 630 W (4 Ω), 460 W + 460 W (8 Ω) power output

Max. 8 Mic / 12 Line Inputs (8 mono + 4 stereo)

High-Z input (channel 4) to connect guitars or basses directly

1-Knob Master EQ™

Onboard Feedback Suppressor

High-grade effects: SPX with 24 programs



10" 2-way loudspeaker

Maximum SPL 123dB peak

Durable Plastic enclosure

Compact and lightweight 9.4 kg (20.7 lbs)

Integrated M8 rigging points for suspended applications

Optional Brackets (BBS251, BCS251, BWS215-300, BWS251-400) and Speaker Cover (SPCVR-1001)
