| Resumen
|
| Tipo
|

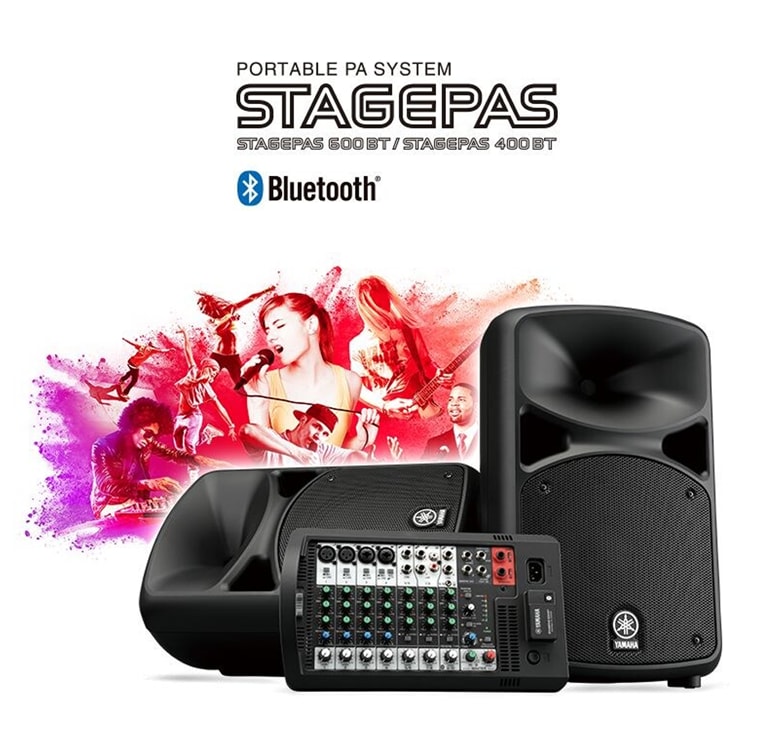

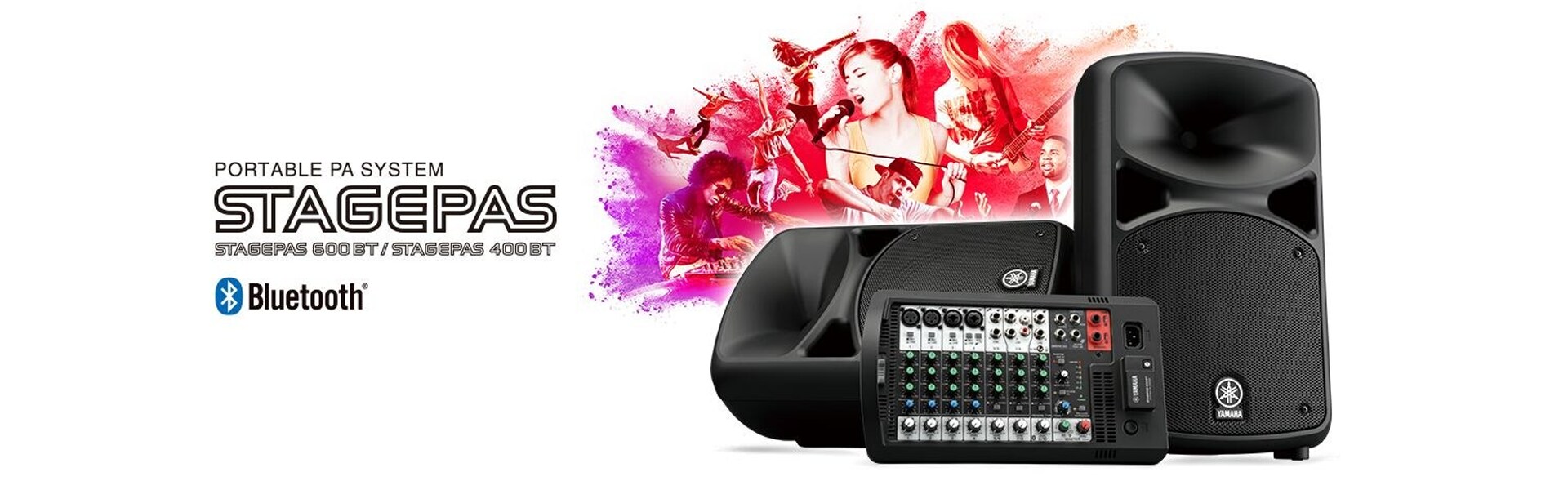

Powered mixer with 2 passive speakers |
Powered mixer with 2 passive speakers |
| Capacidad de mezcla
|
Canales de mezcla
|
8 |
10 |
| Funciones de canal de entrada
|
Hi-Z switch: CH4, ST/MONO switch: CH5/6-7/8 |
Hi-Z switch: CH4, ST/MONO switch: CH5/6-9/10 |
| Funciones de canal de salida
|
Feedback suppressor, 1-Knob Master EQ™ |
Feedback suppressor, 1-Knob Master EQ™ |
| I/O
|
Entradas
|
4 mono mic / line + 4 mono / 2 stereo line |
4 mono mic / line + 6 mono / 3 stereo line |
| Salidas
|
SPEAKERS OUT (L, R), MONITOR OUT (L/MONO, R), SUBWOOFER OUT (MONO) with auto HPF |
SPEAKERS OUT (L, R), MONITOR OUT (L/MONO, R), SUBWOOFER OUT (MONO) with auto HPF |
| Bluetooth
|
Bluetooth Ver.4.1, A2DP v1.2, Maximum Range: Approx. 10 m |
Bluetooth Ver.4.1, A2DP v1.2, Maximum Range: Approx. 10 m |
| I/O |
Control y otros
|
Reverb foot switch |
Reverb foot switch |
| Procesadores integrados
|
DSP |
SPX digital reverb (4 program, parameter control) |
SPX digital reverb (4 program, parameter control) |
| Outline |
| I/O |
Phantom power |
+30V (CH1, 2) |
+30V (CH1, 2) |
| Input Channel Function |
Hi-Z |
CH4 |
CH4 |
| EQ HIGH |
HIGH Shelving: 8 kHz |
HIGH Shelving: 8 kHz |
| EQ LOW |
LOW Shelving: 100 Hz |
LOW Shelving: 100 Hz |
| EQ MID |
- |
MID peaking: 2.5 kHz |
| On-board amplifiers |
Maximum output power @4ohms |
400W (200 W + 200 W) (Dynamic), 360W (180W + 180W) (Continuous) |
680W (340 W + 340 W) (Dynamic), 560W (280W + 280W) (Continuous) |
| Especificaciones generales |
| Tipo de altavoz |
Two-way bass-relfex speakers |
Two-way bass-relfex speakers |
| Rango de frecuencia (-10dB) |
55 Hz - 20 kHz |
55 Hz - 20 kHz |
| Ángulo para modo de monitor |
50° |
50° |
| Componentes |
LF (frecuencia baja) |
8" (20 cm) cone |
10" (25 cm) cone |
| HF (frecuencia alta) |
1" (2.54 cm) voice coil compression driver |
1.4" (3.56 cm) voice coil compression driver |
| Nivel máximo de salida (1m; sobre eje)
|
125 dB SPL / speaker |
129 dB SPL / speaker |
| Requisitos de alimentación |
100 V - 240 V 50 Hz/60 Hz |
100 V - 240 V 50 Hz/60 Hz |
| Consumo de energía |
30 W (Idle), 70 W (1/8 Power) |
35 W (Idle), 100 W (1/8 Power) |
| Toma de poste |
34.8-35.2 mm pole socket with StageLok™ |
34.8-35.2 mm pole socket with StageLok™ |
| Accesorios |
Cover panel, Power cord (2m), 2 x Speaker cables (6m), 12 x Non-skid pads, 2 x Ferrite Cores, 2 x Cable ties |
Cover panel, Power cord (2m), 2 x Speaker cables (6m), 12 x Non-skid pads, 2 x Ferrite Cores, 2 x Cable ties |
| Opciones |
Yamaha BMS10A (mic stand adaptor) for mixer mount, FC5 (foot switch) for reverb ON/OFF |
Yamaha BMS10A (mic stand adaptor) for mixer mount, FC5 (foot switch) for reverb ON/OFF |
| Otros |
Handle: 1 x Top |
Handle: 1 x Top |
| Especificaciones generales
|
| Cobertura nominal
|
H (altura)
|
90° |
90° |
| V |
60° |
60° |
| Dimensiones (Ancho x Altura x Profundidad)
|
Speaker 289 x 472 x 275 mm, Mixer 308 x 180 x 116 mm |
Speaker 335 x 545 x 319 mm, Mixer 348 x 197 x 135 mm |
| Peso
|
18.3 kg (40.3 lbs) (2 x Speaker 7.7kg + Mixer 2.9kg) |
25.6 kg (56.4 lbs) (2 x Speaker 10.9 kg + Mixer 3.8 kg) |
