The M7CL V3 Editor application provides off-line programming access to all console parameters.Setups can be downloaded from the computer to the console either via direct Ethernet connection or a USB memory stick.
iPad app to control and monitor your M7CL mixing console.
Control Centralogic™ y Selected Channel: dos enfoques intuitivos para la realización de mezclas
La M7CL se ha diseñado para ofrecer un entorno de control completo y visualmente familiar. Cada aspecto de la mesa, desde la disposición de las teclas de navegación hasta las avanzadas funciones gráficas en pantalla, incluidos los iconos de nombre de canal y una biblioteca virtual de ecualización y efectos, proporciona indicaciones visuales que permiten manejar las funciones del sistema sin tener que recurrir al manual. Y con la pantalla táctil puede acceder y manejar las funciones fácilmente como si fueran controles físicos. La M7CL integra todo lo necesario para producir un sonido en directo de calidad superior con una interfaz intuitiva que convierte la transición de analógico a digital en un verdadero placer.
* Please read privacy policy carefully before downloading and installing the StageMix.
* Apple, iPhone, iPod touch and iPad are trademarks of Apple Inc. registered in the U.S. and other countries. App Store is a service mark of Apple. Inc.
Notice for usage
The RTA data is not displayed in iPadOS 18 or later due to the specification change of iPadOS.
Important notice for using StageMix for M7CL with iPad Air 2
There are cases where the synchronization between M7CL and StageMix may not be established when iPad Air 2 is used. In that case, follow the instructions below.
1. In the M7CL's function access area, press the SETUP button to access the SETUP screen.
2. In the lower line of the SETUP screen, press the NETWORK button to access the NETWORK popup window.
3. In the LINK MODE select area, press the 10BASE-T button and press the OK button to select 10BASE-T mode.
4. Turn off the M7CL's power and then on again.
Características
The Best Listening Position is the Best Control Position
In many cases the console position is not the optimum place to be when mixing for live sound. In fact, space and other restrictions sometimes mean that the console ends up in the worst possible spot for listening and mixing.

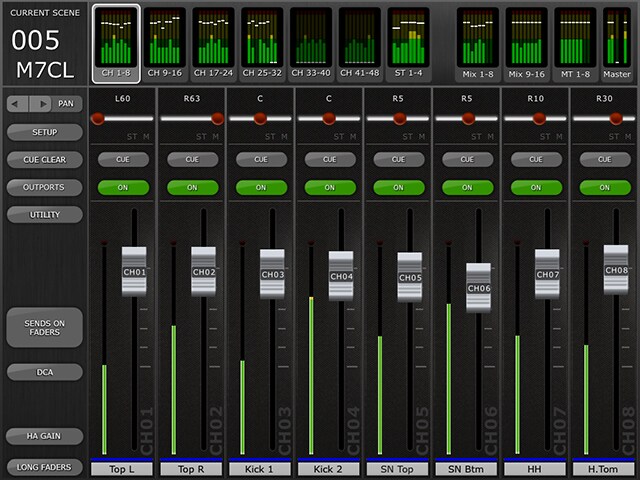

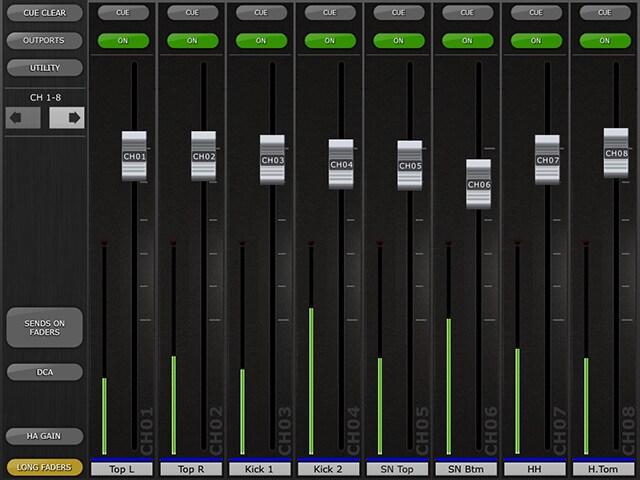

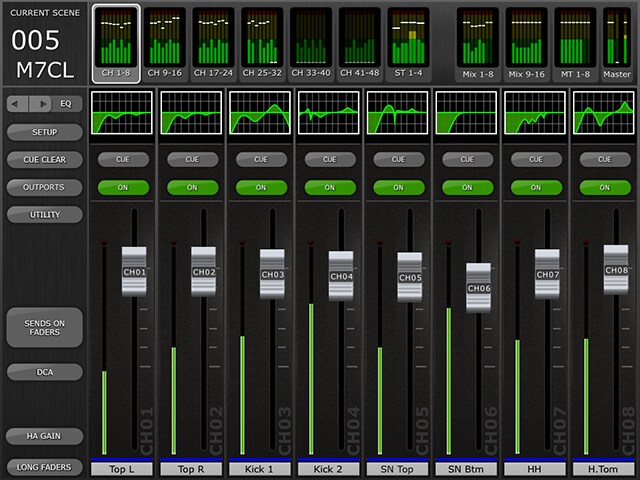

Mixer Window
The main page of the StageMix is called the "Mixer" window. It shows the EQ curve, CUE and ON buttons, fader and level meters, and channel names for eight adjacent channels.Across the top of the screen, all Input, Mix and Matrix level meters and faders are displayed in blocks of eight. This is the "Navigation/Meter Bridge". Press any of these blocks to select which channels are viewed in the fader strips below.

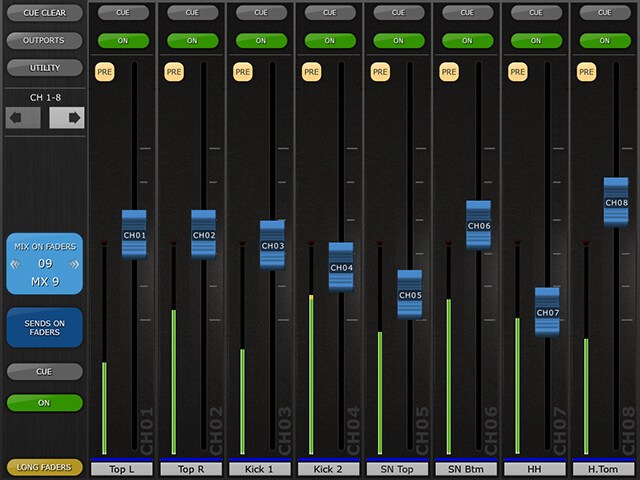

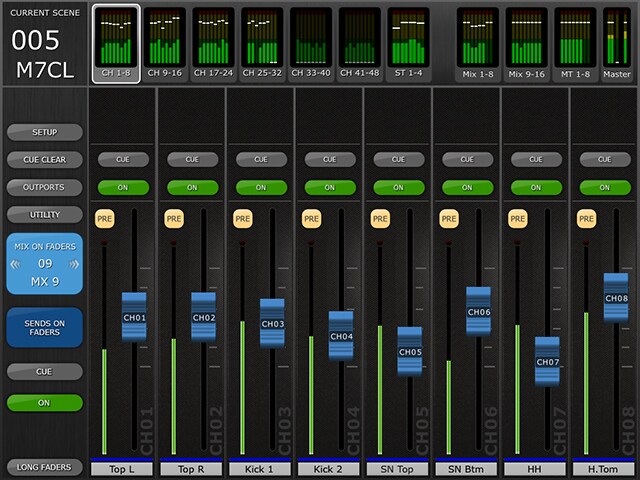

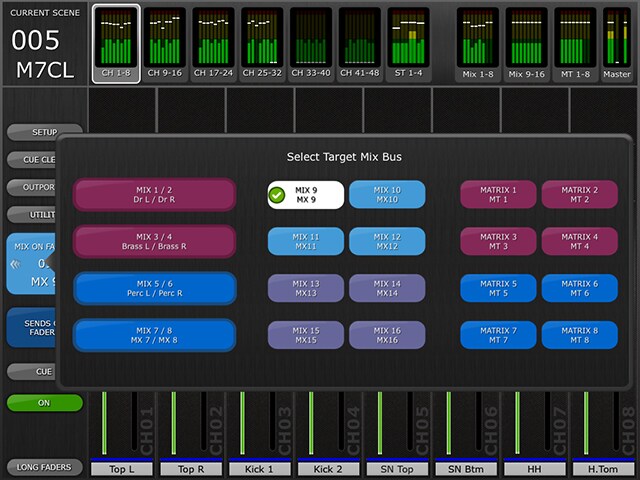

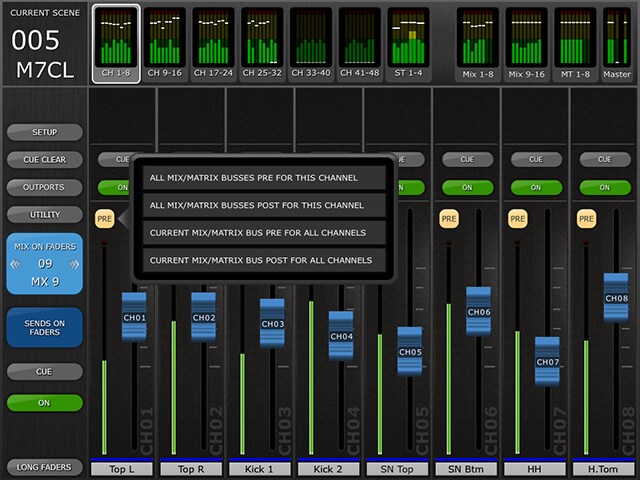

SENDS ON FADERS
The color of this button matches those used on the M7CL console. [CUE] and [ON] buttons appear below, allowing the currently active Mix or Matrix bus to be Cued and turned On/Off.

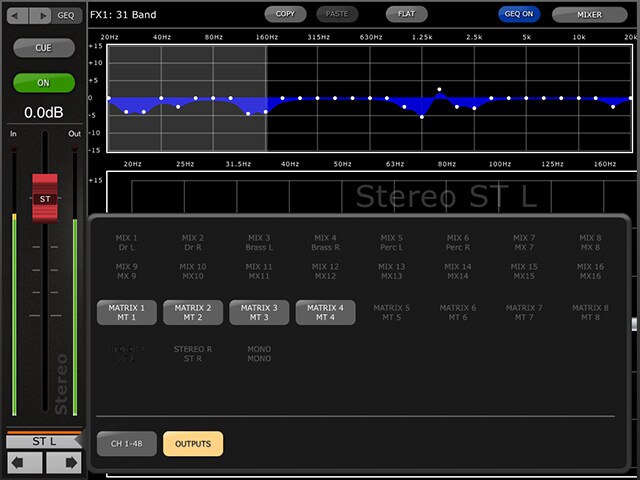

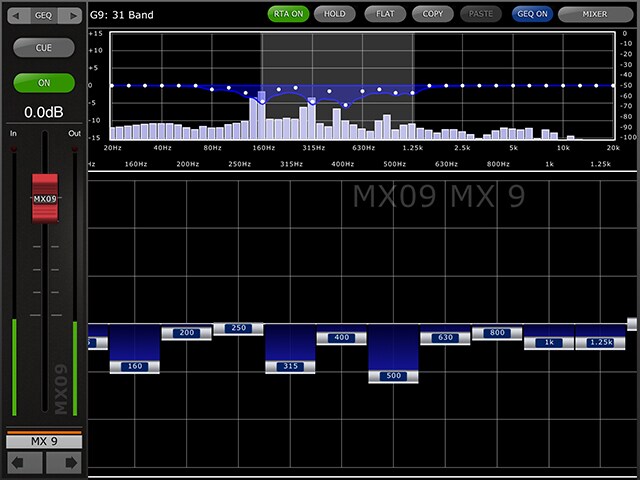

EQ Editing (GEQ)
The upper section of the GEQ setup screen shows GEQ curves and gain levels of all 31 bands. White dot indicates the level position of each band. You can set up each band level by faders shown below it. Settings can be done up to 10 bands at once. Slide the screen to select different bands.

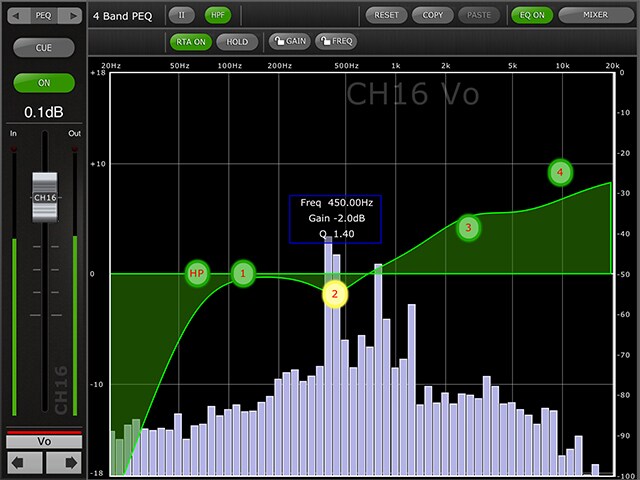

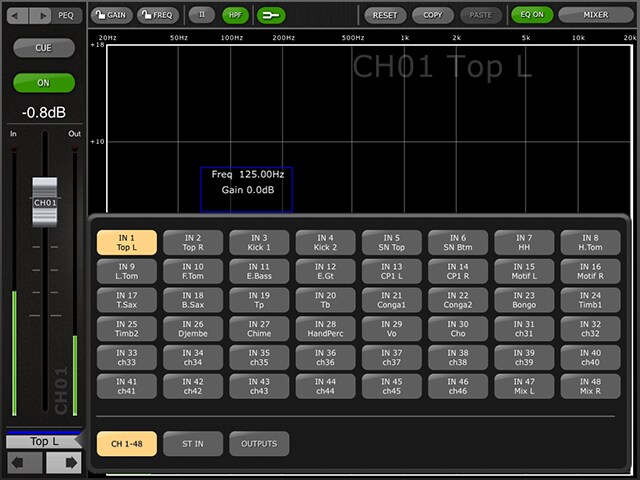

EQ Editing (PEQ)
One band of Parametric EQ can be adjusted at a time. Press one of the green circles to select the band, and it will be highlighted yellow. EQ bands in StageMix are labelled as follows:- HP = HPF (input channels only)- 1 = Low Band- 2 = Low-Mid Band- 3 = High-Mid Band- 4 = High Band

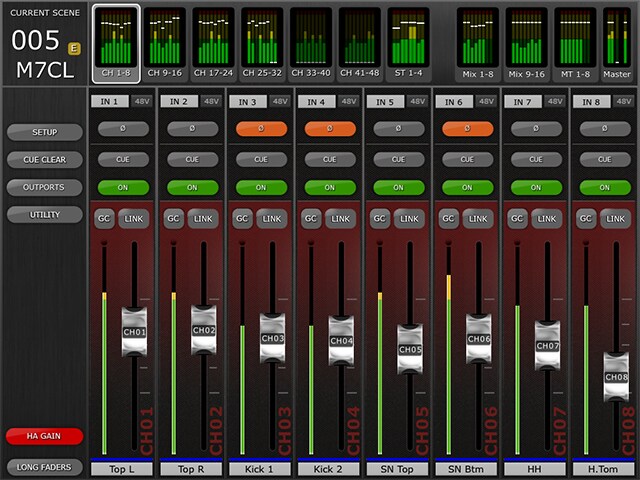

Head Amp Gain
The head amp gain for each input channel can be controlled using the faders in StageMix. Press the [HA GAIN] button in the lower left portion of the Mixer window to enter HA GAIN mode. This button will turn red and the background behind the channel faders will become red to indicate that StageMix is in HA Gain control mode.

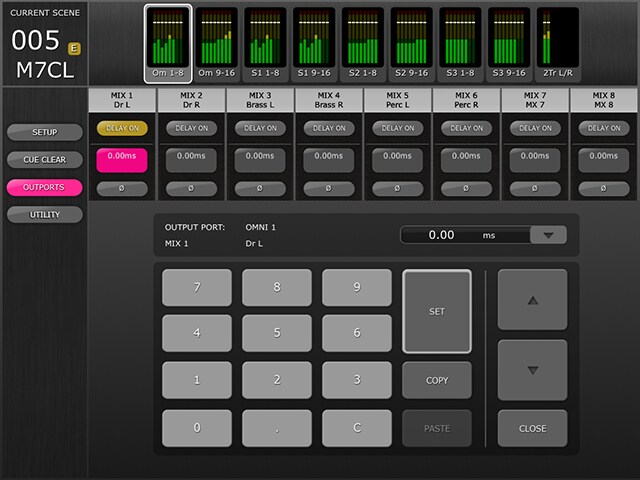

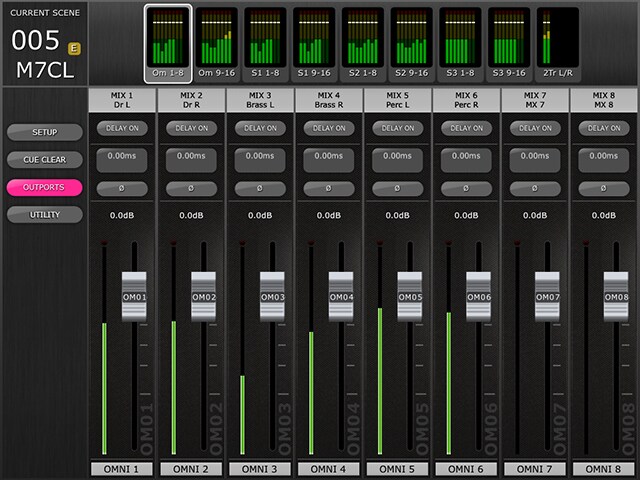

Outports

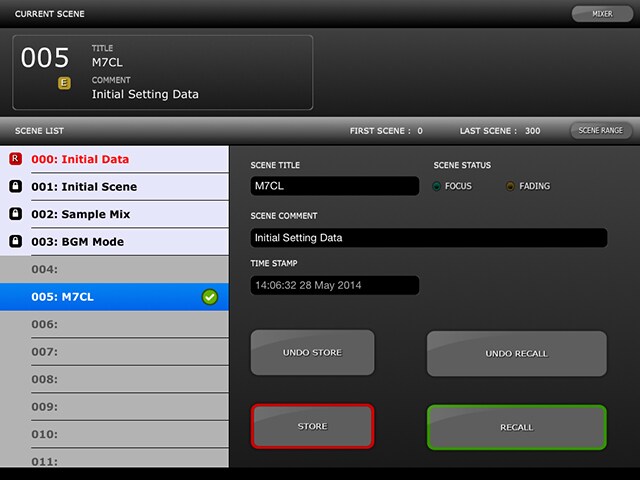

Scene Memory
From this screen, the parameters on the console can be stored to the Scene Memory, which can also be recalled to the console when selected. Scene Titles and Comments that are shown on this screen can be edited easily by tapping on them.
